◈ SKETCHBOOK MODULE // HW-01

Guitar Pedals & Hardwire Labs

"Building signal tools by hand — combining classic circuitry layouts with stoner grit."

CUSTOM SHOP SPECIFICATIONS

Kalispell Custom Guitars

HAND-CRAFTEDPNW BENCH

Luthier Blueprint & Specs

Handcrafted in Kalispell, Montana, using premium woods sourced locally in the Pacific Northwest. Engineered to merge vintage offset feel with absolute electrical shielding integrity.

NECK PROFILE: MEDIUM "C"

Meticulously hand-shaped neck with rolled fretboard edges, 9.5" radius, medium-jumbo frets, and vintage amber nitrocellulose lacquer finish for a worn-in, classic feel.

TONE WOODS: PNW ALDER & fig MAPLE

Select resonant Alder bodies matched with quartersawn Northwest Maple necks, finished in ultra-thin nitro to allow the wood to breathe and vibrate naturally.

WIRING: SOLID COPPER SHIELDING

Entire control and pickup cavities are completely lined with heavy copper shielding foil, grounded to eliminate external electromagnetic hum and preserve high frequencies.

Hardware Matrix

BODY STYLE	Offset contour, custom balance weight distribution
FRET WIRE	Jescar Medium Jumbo (6105 equivalent) nickel-silver
PICKUPS	Hand-wound custom Alnico V vintage-voiced single coils
POTENTIOMETERS	CTS Premium 250k/500k audio taper pots (matched ±8%)
JACK / SWITCH	Switchcraft heavy-duty output jack & 3-way toggle
SHIELDING	Full copper cavity wrap + silver conductive shielding paint

◈ TRANSIENT RESONANCE NOTE ◈

"By coupling custom hand-rolled C-necks with premium quartersawn maple and high-conductivity copper shielding, the transient attack of the string is completely preserved, preventing the loss of high-end harmonic space through cable load."

FLAGSHIP HARDWARE SPECIFICATION

Cosmo Gump — After Burn OD

HANDWIREDBOUTIQUE

Hardware Build Evolution

Scrub the slider below to witness the progression from breadboard cardboard mockup, internal point-to-point PCB components soldering, to the final purple hand-painted aluminum enclosure.

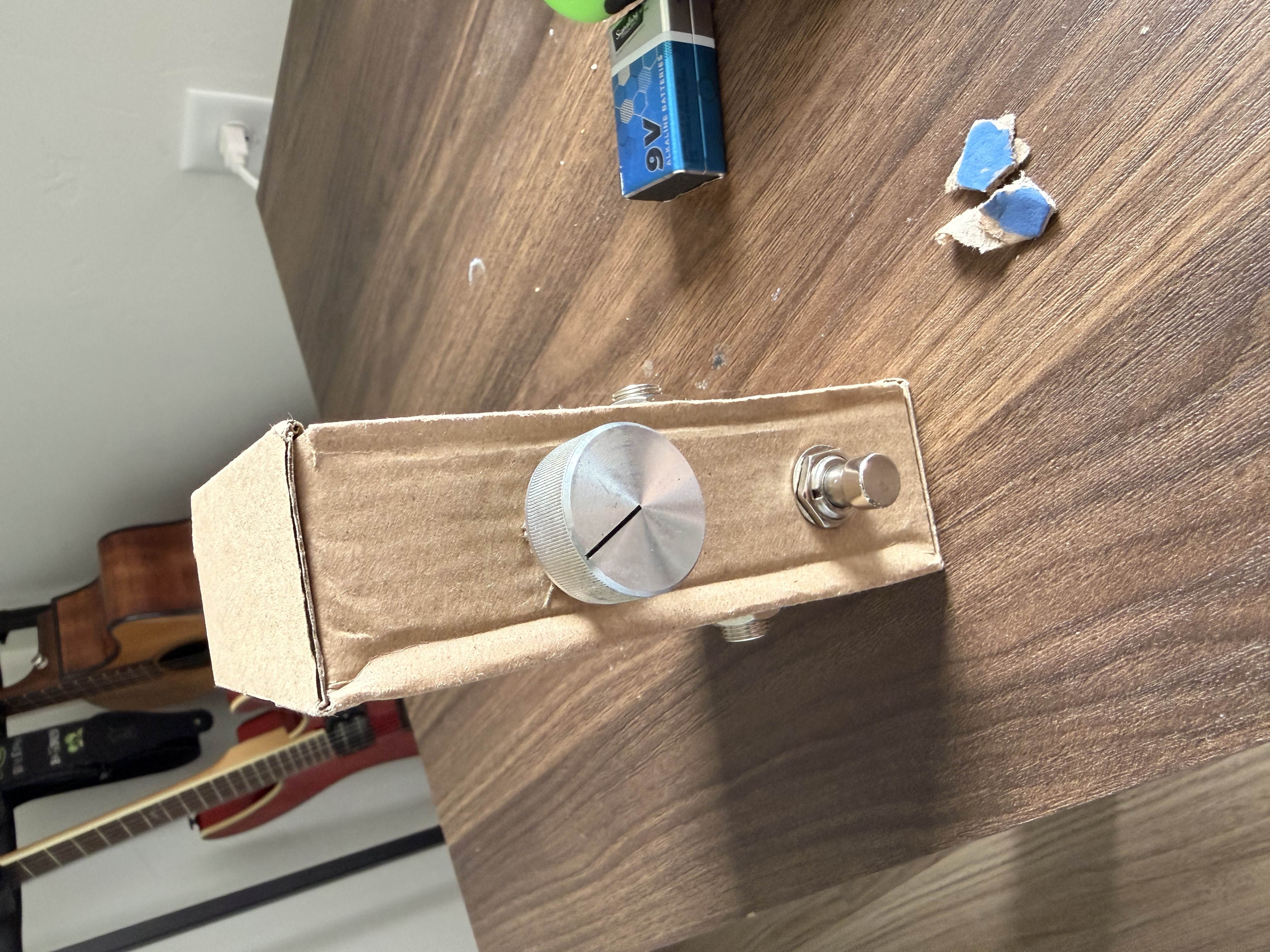

CARDBOARD PROTOTYPE

1 / 15 // Ergonomic Mockup● COMPLETED

"From Concept to Cardboard to Chassis"

CARDBOARDHARDWIRE GUTSFINISHED SYSTEM

Laying out the chassis dimensions and control knob spacing on cardboard to verify footprint.

Control Topology & Parameters

GAIN

Controls overdrive saturation levels.

VOLUME

Sets output boost headroom volume.

TONE

Technical high filter sweep.

BOOST

Engages secondary gain preamp.

BYPASS ROUTING	True Bypass (Robust mechanical 3PDT stomp)
CURRENT DRAW	12mA @ 9V DC negative-center input
INPUT IMPEDANCE	1M Ohm (Preserves raw guitar signal highs)
OUTPUT IMPEDANCE	10k Ohm (Drives cable lines without loss)
CLIPPING LOGIC	Hybrid Silicon/Germanium symmetric configuration
CHASSIS FINISH	Diecast Aluminum, Primed & Hand-painted Purple

SYSTEM SCHEMATIC // OVERDRIVE BOOST BUFFERMODULE: OD-01-B

* Schematic draft: symmetrically clipped overdrive block utilizing germanium diodes for sag & compression.

◈ FUTURE PIPELINE DESIGNS

The Workbench Pipeline

"Mocking up the future builds — engineering schematic ideas waiting for the solder iron."

SYSTEM PROTO // 02

SILICON / GERMANIUM HYBRID FUZZ

Solar Flare Fuzz

"Variable Voltage Bias Saturation"

A modern silicon/germanium hybrid fuzz equipped with a variable voltage bias control. Starve the circuit for gatey, lo-fi velcro fuzz, or flood it for smooth, infinite sustain.

TARGET TOPOLOGY METRICS:
◈ BYPASS: TRUE BYPASS
◈ CURRENT: 8MA @ 9V
◈ DIALS: BIAS, FUZZ, LEVEL

 SCHEMATIC APPROVED

SYSTEM PROTO // 03

BBD ANALOG DELAY & MODULATION

Echo Chamber Delay

"Bucket Brigade Tape Modulation Warmth"

A warm analog delay modeled around retro Bucket Brigade Devices. Features an integrated tape modulation sweep that adds a lush, organic warble to your self-oscillating tails.

TARGET TOPOLOGY METRICS:
◈ BYPASS: BUFFERED BYPASS
◈ CURRENT: 45MA @ 9V
◈ DIALS: TIME, FEEDBACK, MIX, DEPTH

 SCHEMATIC APPROVED

SYSTEM PROTO // 04

POINT-TO-POINT TUBE BOOSTER

Voltage Regulator Preamp

"High-Voltage Pentode Gain Stage"

A point-to-point handwired pentode tube preamp. Runs a high-voltage gain stage that adds genuine tube compression, mid-forward presence, and glass-shattering boost headroom.

TARGET TOPOLOGY METRICS:
◈ BYPASS: TRUE BYPASS
◈ CURRENT: 120MA @ 12V
◈ DIALS: TUBE GAIN, BASS, TREBLE, BOOST

 SCHEMATIC APPROVED
